Двойной электропривод Okimat 4IPS

Двойной электропривод Okimat 4IPS

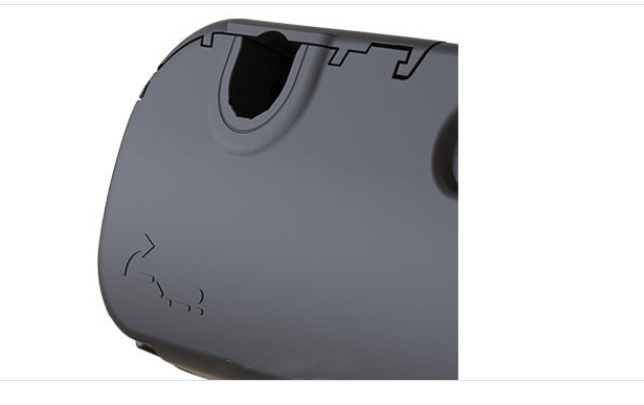

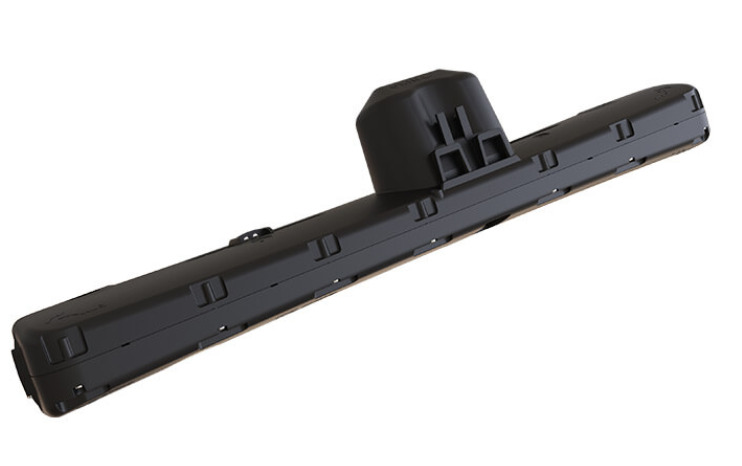

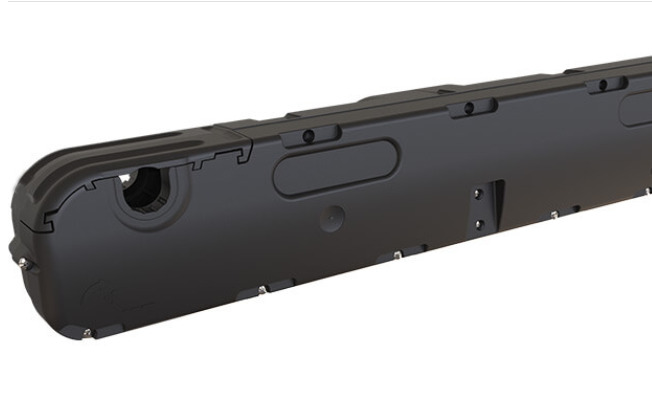

Электрический  актуатор OKIMAT4 IPS

Современный мощный электропривод с двумя двигателями для функциональных кроватей. Множество вариантов управления от простого кабельного пульта до Bluetooth.

усилие max. 6000 N на каждую сторону (по соображениям безопасности отсутствует втягивающее усилие)
скорость перемещения штока при 6000N-  3,3 мм/сек *
аварийный спуск :  2 x9 Vбатареи
Степень защиты IP20
* в зависимости от конфигурации привода, без нагрузки.

STANDARD CONFIGURATIONS

General data _____ :
Max. adjustment load per side : 6000 N
Max. torque : 432 Nm
Adjustment speed at 6000 N : 3.3 mm/sec
Stroke length of back section : 48 /54 / 69 / 74 / 87 mm
Stroke length of leg section : 48 / 54 / 69 / 74 / 87 mm

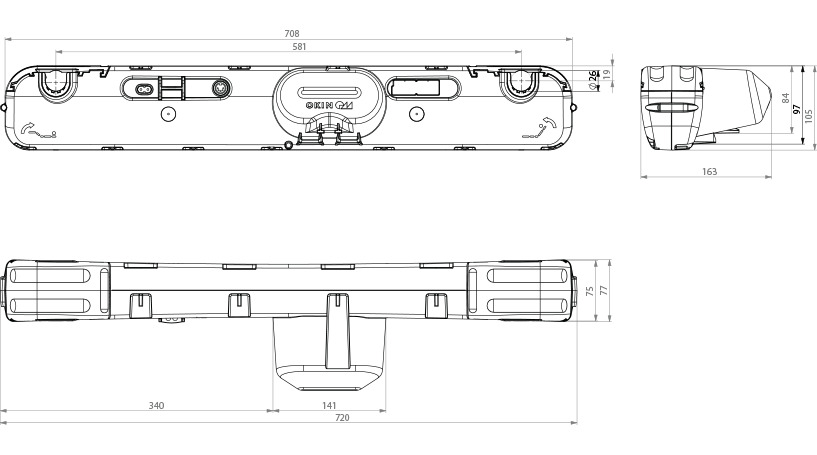

Fitting dimension, length : 708 mm
Fitting dimension, height : 105 mm
Fitting dimension, centre distance : 581 -+ 1 mm
Fitting dimension, spindle diameter : 25 / 34 mm
Duty cycle : 2/18 min
Duty cycle : 10 %
Switching cycles, max./min : 5/min
Protection degree : IP20
Protection class : II
Relative air humidity : 20-95 %
Ambient temperature : 0 to +40 °C
Mains power connection : 230-240 V/AC
Safety : Electronic overload switch-off
Control : Direct
Motor voltage : 24 V DC
Motor : Maintenance-free
Components _____ :
Limit cut-off : Micro-switch
Housing colour : Black RAL 9005
Connection options _____ :
Components : Cable handset - Pluggable radio remote control (2.4 GHz bidirectional) - Pluggable Bluetooth control unit for iOS and Android - Pluggable control unit (HE150) with radio wave, Bluetooth, memo, massage and MFP port
