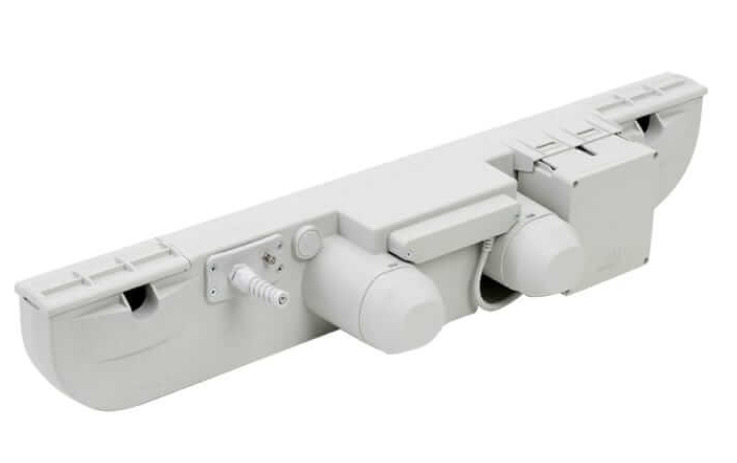

Двойной электропривод Duomat 7

Двойной электропривод Duomat 7

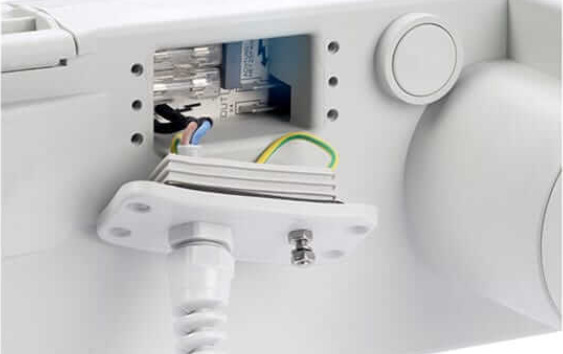

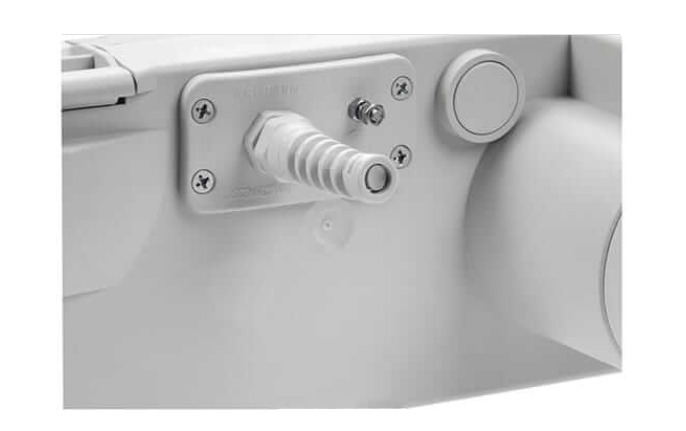

Привод с двумя двигателями DUOMAT 7 - идеальное монтажное решение для для легкой установки без инструментов в больничном секторе и секторе по уходу за больными. Многочисленные дополнительные детали и опции: интегрированный держатель заряжаемой батареи,  защита кабеля от вытаскивания, окно для сервиса – предполагают больше возможностей для использования этого актуатора.

- усилие 3500Nна каждую сторону ( для безопасности – без усилия втягивания)

-  скорость перемещения штока макс. 5,4 мм/сек  *

- питание – тороидальный трансформатор

- опции: механическое опускание, заряжаемая батарея AG7 для опускания в отсутствии питания

*) в зависимости от конфигурации актуатора при постоянном 24/29Vв отсутствии нагрузки.

Performance data

Load capacity : max. 3500 N on each side (for safety reasons, no pull force)
Adjustment speed * : max. 5.4 mm/sec.
Stroke length : back rest: 87 mm leg rest: 69 mm

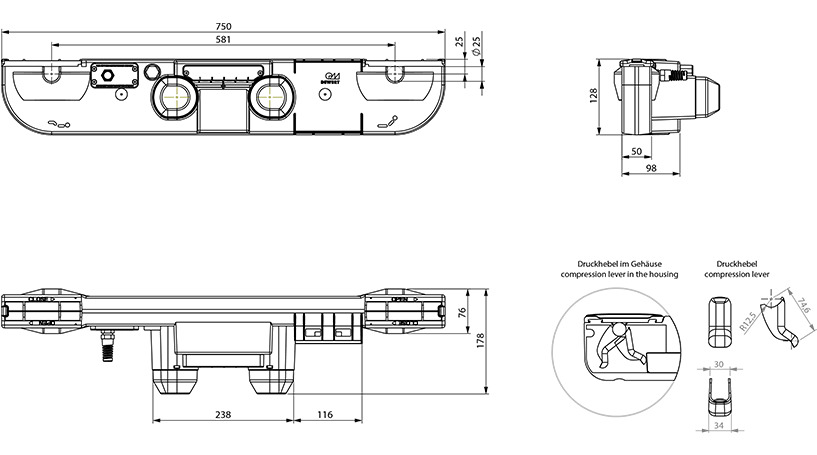

Fitting dimension : installation length: 751 mm component height: 128 mm axle distance: 581 mm (+/- 3 mm) axle diameter: 25 mm
Duty cycle : 2/18 min. or 10 %, max. 5 switching cycles per minute
Control unit : relay control
Motor voltage : maintenance-free 24 V DC motor
Input voltage : 220-240 V AC 50-60 Hz

Components

Limit switch : with micro switch
Housing colour : light grey RAL 7035
Supply cable : contour plug, grey, spiralled, 1950 mm, EPR earthing pin plug, grey, spiralled, 1950 mm, EPR CH-plug, grey, spiralled, 1950 mm, EPR CH-plug with earthing, grey, spiralled, 1950 mm, EPR GB-plug, grey, spiralled, 1950 mm, EPR GB-plug with earthing, grey, spiralled, 1950 mm, EPR
Transformer / Transformer type : toroidal transformer 155 VA

Further data

Connectivity ** : connections for drives 2 connections for rechargeable battery: 1 connections for operating elements: 1 connections for locking device: 1
Protection type : IPX4
Protection class : II
Relative humidity : 30% – 75%
Ambient temperature : +10°C - +40°C
Safety : single-fault protected

EXTRA CONFIGURATIONS

Control unit : microprocessor control (synchronous control unit)
Input voltage : 100, 120 V AC 50-60 Hz; country-specific variants on demand

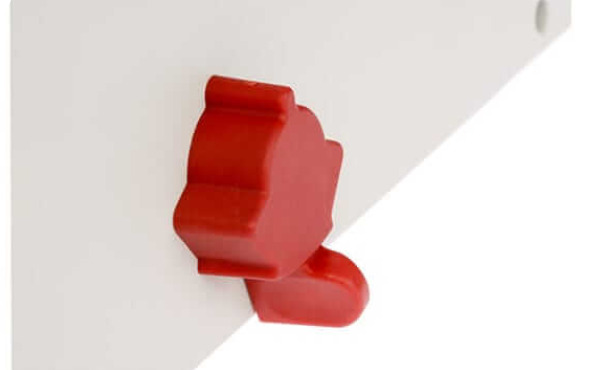

Quick release / Retracting function *** : mechanical retracting function
Protection class : I
Equipment options : rechargeable battery for mains-free retracting function (AG 7)
Certificate : 60601-1 3rd Edition

*

* depending on the drive configuration and the control components which are used :
** (example, depending on control unit type) :
*** Retracting function: The clutch of the lowering function must be open during the entire downward movement. :
