Двойной электропривод Duomat 3

Двойной электропривод Duomat 3

DUOMAT 3 – это стандартизированный  привод с двумя двигателями для системы  EASYDRIVE. Отличается высокой надежностью, простотой установки и невысокой ценой

усилие max. 3500 Nна каждую сторону (по соображениям безопасности отсутствует втягивающее усилие)
скорость перемещения штока макс. 3,9 мм/сек *
Опция:  : 2 x 9 V батареи
Степень защиты IPX4
* в зависимости от конфигурации привода, без нагрузки.

STANDARD CONFIGURATIONS

Load capacity : max. 3500 N on each side (for safety reasons, no pull force)
Adjustment speed * : max. 3.9 mm/sec.
Stroke length : back rest: 69 / 87 mm leg rest: 69 / 87 mm

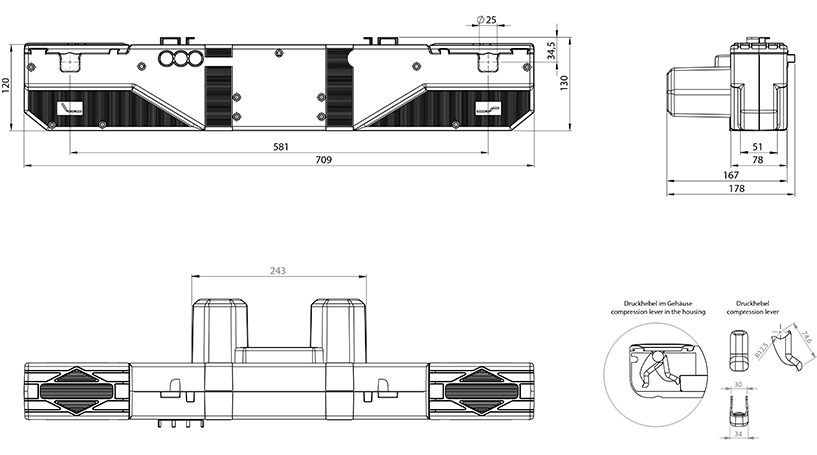

Fitting dimension : installation length: 708 mm component height: 120 mm axle distance: 581 mm (+/- 2 mm) axle diameter: 25 mm
Duty cycle : 2/18 min. or 10 %, max. 5 switching cycles per minute
Control unit : relay control
Motor voltage : maintenance-free 24 V DC motor

Components

Limit switch : with micro switch
Housing colour : light grey RAL 7035
Connection cable : black, straight, 2350 mm, LSP-plug, PVC
SMPS : external SMPS PD 14 / PD 15

Further data

Connectivity ** : 2 slave drives 1 handset
Protection type : IPX4
Protection class : III
Relative humidity : 30% – 75%
Ambient temperature : +10°C - +40°C

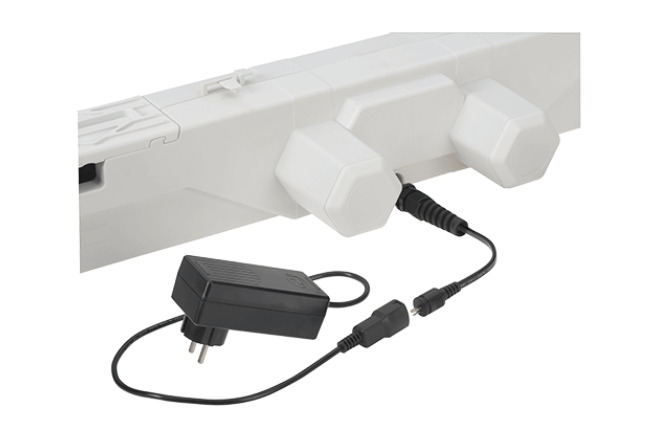

Power supply : wide input voltage range 100-240 V AC (external SMPS PD 14/PD 15)
Safety : single-fault protected

EXTRA CONFIGURATIONS

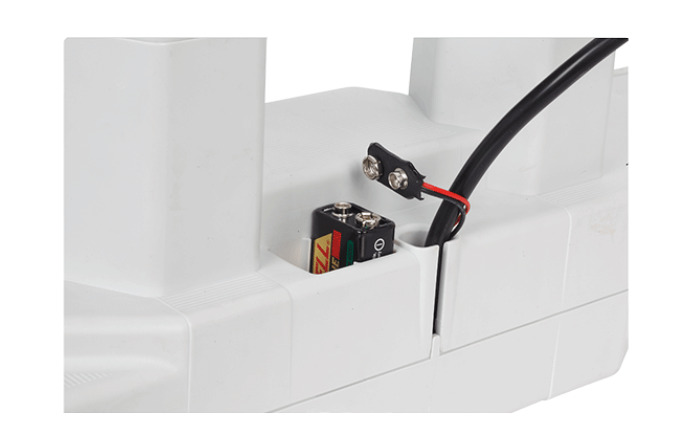

Quick release / Retracting function *** : 2 x 9 V battery

*

* depending on the drive configuration and the control components which are used :
** (example, depending on control unit type) :
*** Retracting function: The clutch of the lowering function must be open during the entire downward movement. :
