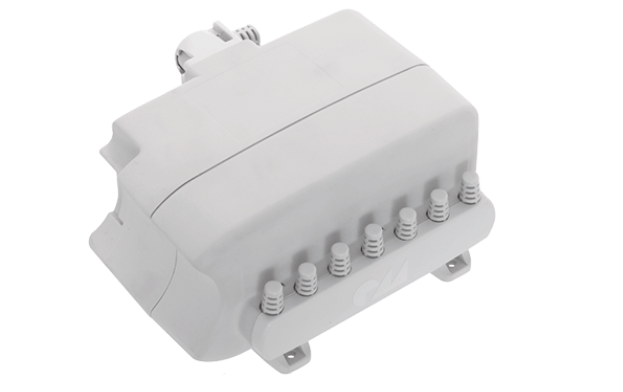

Блок питания MCL II

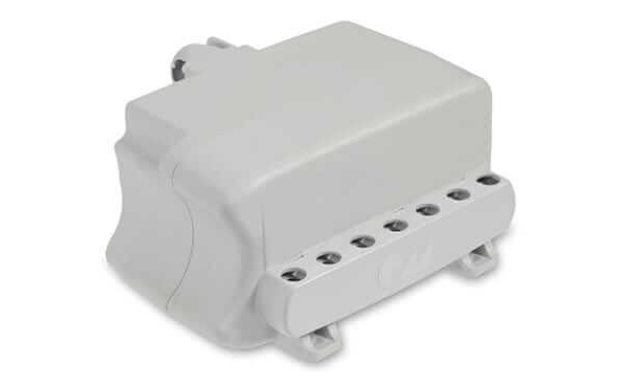

Блок питания 24 В MCL II

Блок управления для макс. 4 актуаторов, со встроенным SMPS.

Предназначен для непосредственного подключения к MEGAMAT 2 и MEGAMAT 5. Защита от первой ошибки.

Варианты подключения: подключения для приводов: 1-4; соединения для элементов управления: 1-2

Опции оборудования: подключение аккумуляторной батареи, розетка (29 В постоянного тока),

например внешние системы освещения, сетевой кабель с заземлением

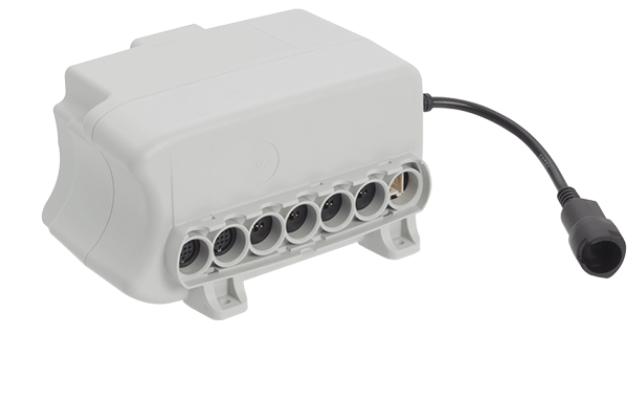

MCL II

STANDARD CONFIGURATIONS

Performance data
Duty cycle	2/18 min. or 10 %, max, 5 switching cycles per minute
Control unit	relay control
Output voltage	29 V DC constant
Components
Housing colour	light grey RAL 7035
Supply cable	pluggable: GB-plug, grey, spiralled, 1960 mm, PVC GB-plug, grey, spiralled, 2460 mm, PVC GB-plug with earthing, grey, spiralled, 1960 mm, PVC USA-plug, grey, straight, 4000 mm, PVC USA-plug with earthing, grey, straight, 4000 mm, PVC AUS-plug, grey, spiralled, 1960 mm, PVC AUS-plug with earthing, grey, spiralled, 1960 mm, PVC JAP-plug, grey, straight, 4000 mm, PVC JAP-plug with earthing, grey, straight, 4000 mm, PVC earthing pin plug, grey, straight, 3000 mm, PVC earthing pin plug, grey, spiralled, 1960 mm, PVC contour plug, grey, spiralled, 1960 mm, PVC
SMPS	yes
Further data
Connectivity ¹	connections for drives: 1-4 connections for operating elements: 1-2
Protection type	IPX6
Protection class	II
Relative humidity	30% – 75%
Ambient temperature	+10°C - +40°C
Power supply	wide input voltage range 100-240 V AC
Safety	single-fault protected
Assembly options	fastening drill-holes

EXTRA CONFIGURATIONS

Performance data
Control unit	relay-free control, microprocessor control (synchronous control unit)
Components
Supply cable	mains cable with earthing connection
Further data

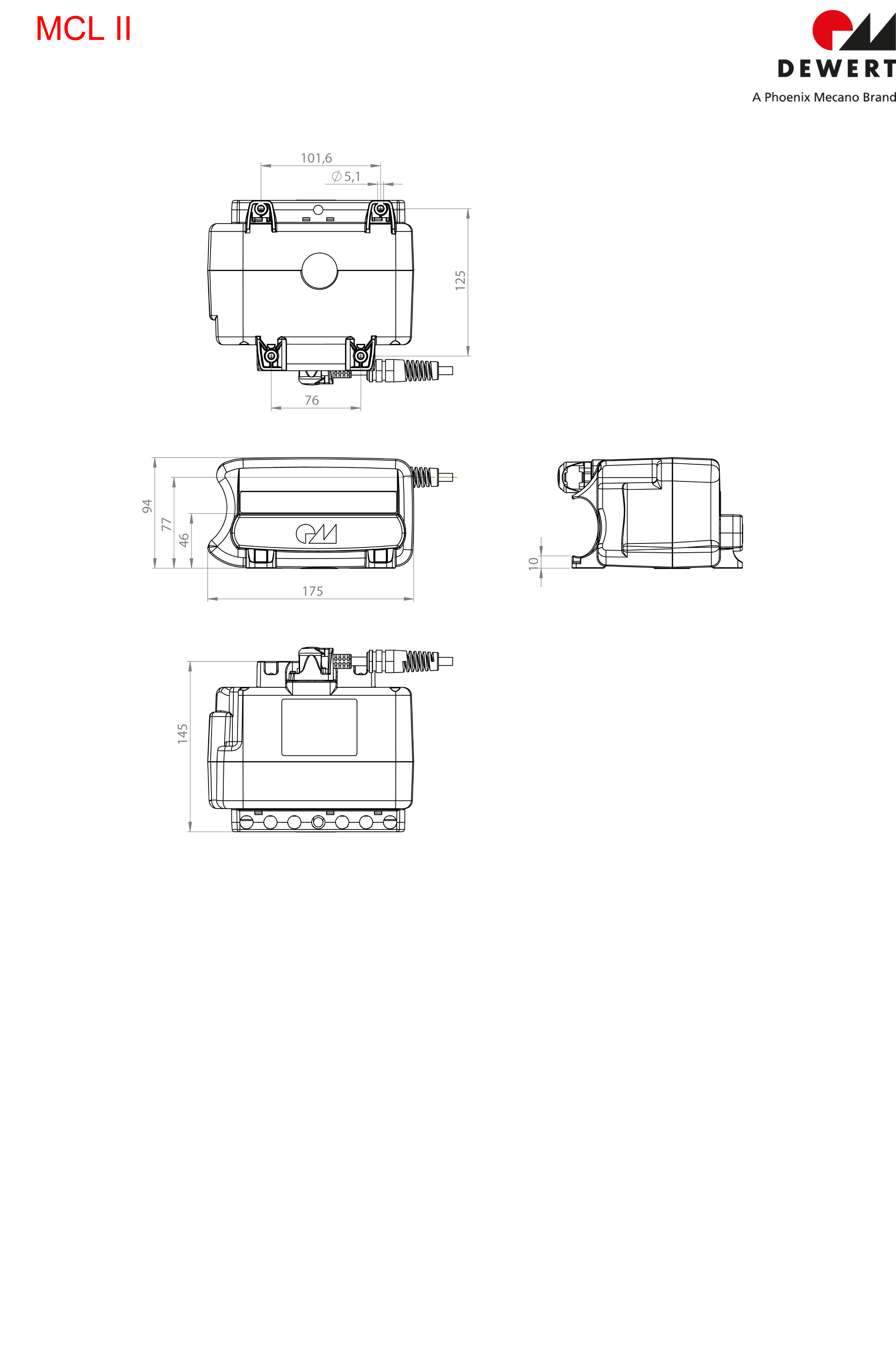

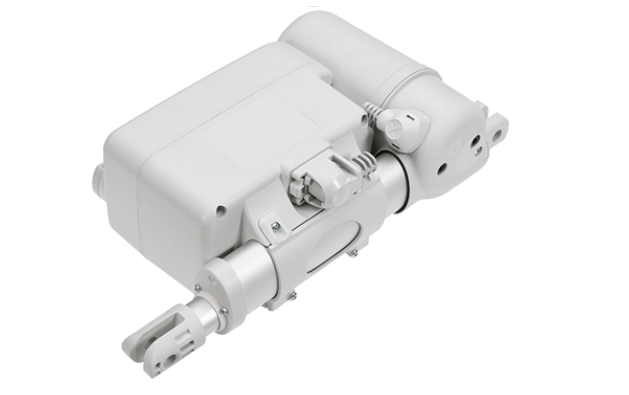

Assembly options	direct fixing to MEGAMAT 2 and MEGAMAT 5 (2 mounting clips)
Equipment options	rechargeable battery connection, power outlet (29 V DC) for e.g. external light systems
